PRODUCTS > Large Curbstone Hollow Block Pigment Paver Making Machine

Large Curbstone Hollow Block Pigment Paver Making Machine

Curbstone Making Machine is designed to produce curbstone, hollow block and other size of brick. The machine is suitable for different buyers.
Item no.: QFT10-15、QT10-15

Payment: TT/LC

Product origin: CHINA

Shipping port: XIAMEN

Color: BLUE AND WHITE

Lead Time: 45DAYS

product introduction

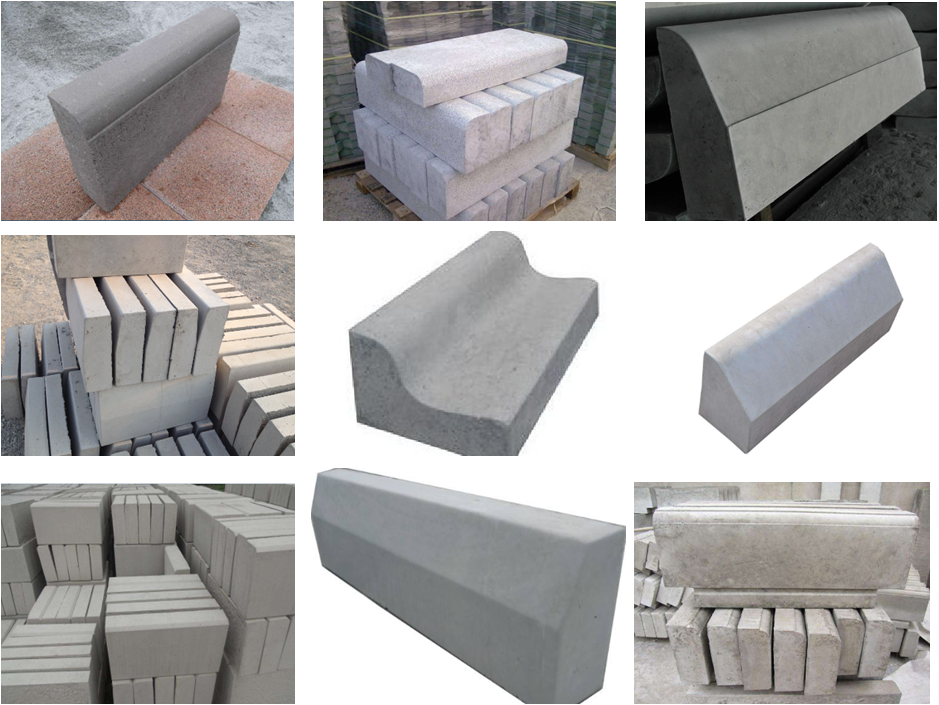

Curbstone Category:

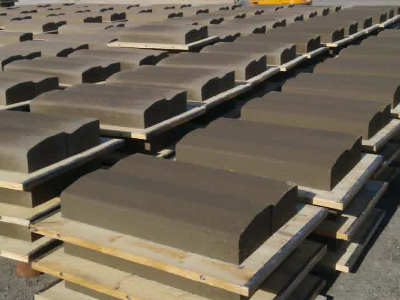

Curbstone

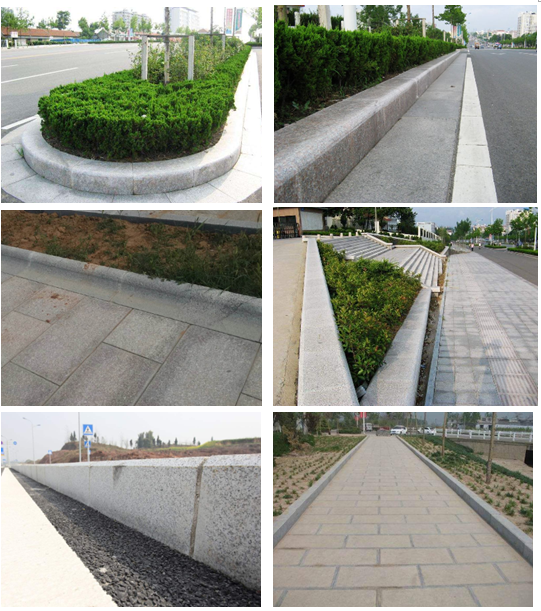

Curbstone Application:

Curbstone Application

The popular model to produce curbstone is QFT10-15 and QT10-15.

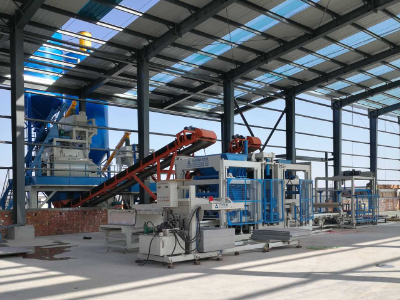

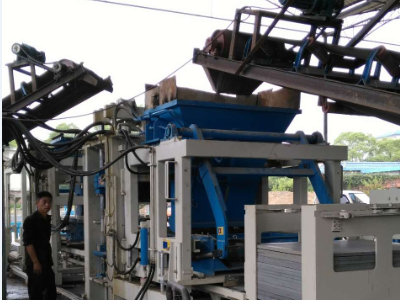

Curbstone Machine

Parameter

Type		QFT10-15	QT10-15
Exciting Force (KN)		100	100
Vibration Frequency (HZ)		0-60	0-60
Power (KW)		59.28	50.88
Molding Method		Automatic charging,	Automatic charging,
		vibrating and pressing	vibrating and pressing
Control Mode		Full automatic PLC control	Full automatic PLC control
Molding Cycle (S)		15-20	15-20
Frame Dimension (mm)		8700×2500×3020	7500×2500×3020
Net Weight of Host Machine (T)		12.2	11
Bamboo Pallet		1220×900×25	1220×900×25
Annual Output based on	Block (m³)	140,000	140,000
double shift of 300 days
	Paving stone (m²)	691,000	--------

Detailed description

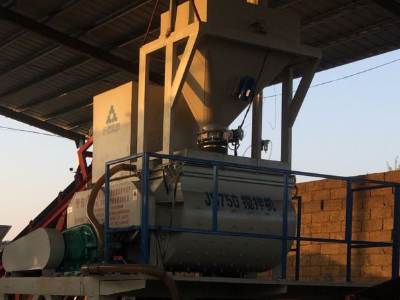

Block Machine Details Material Charging and Demolding Hydraulic and PLC
